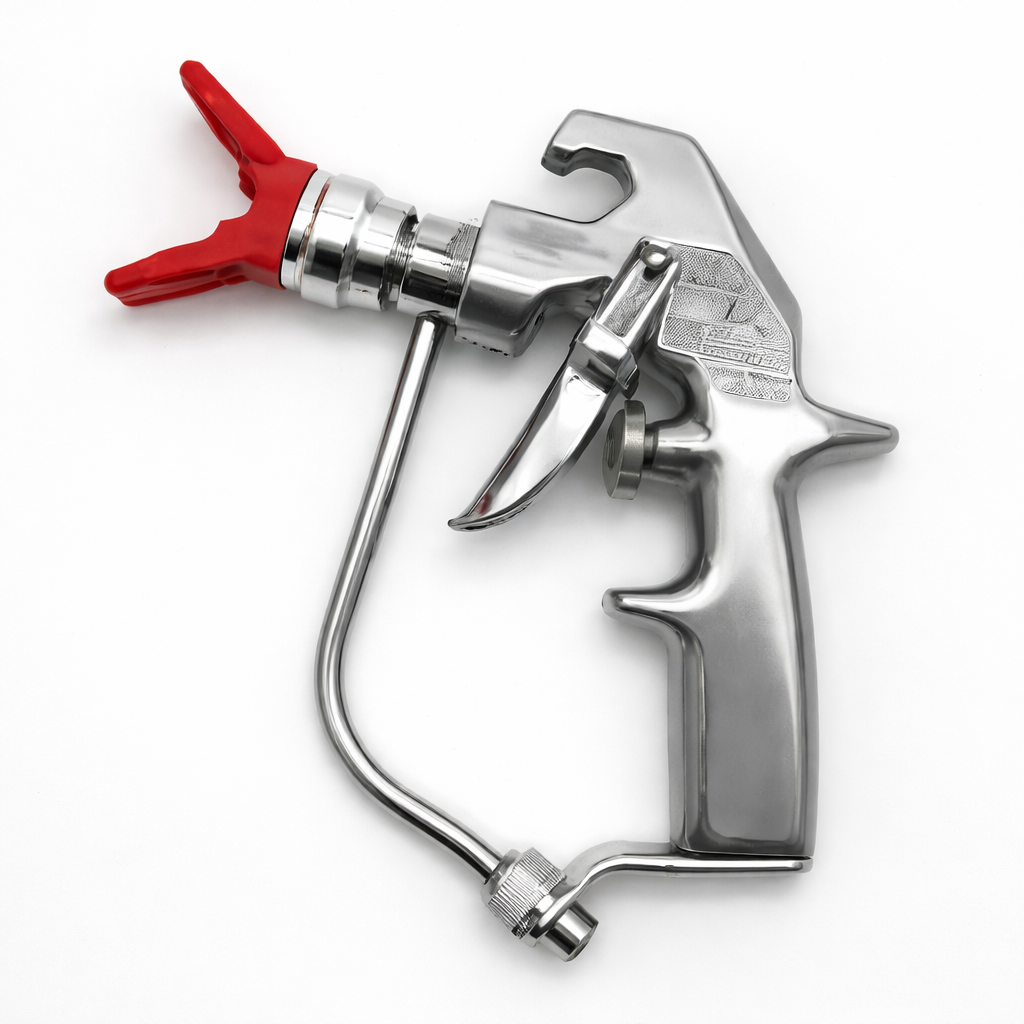

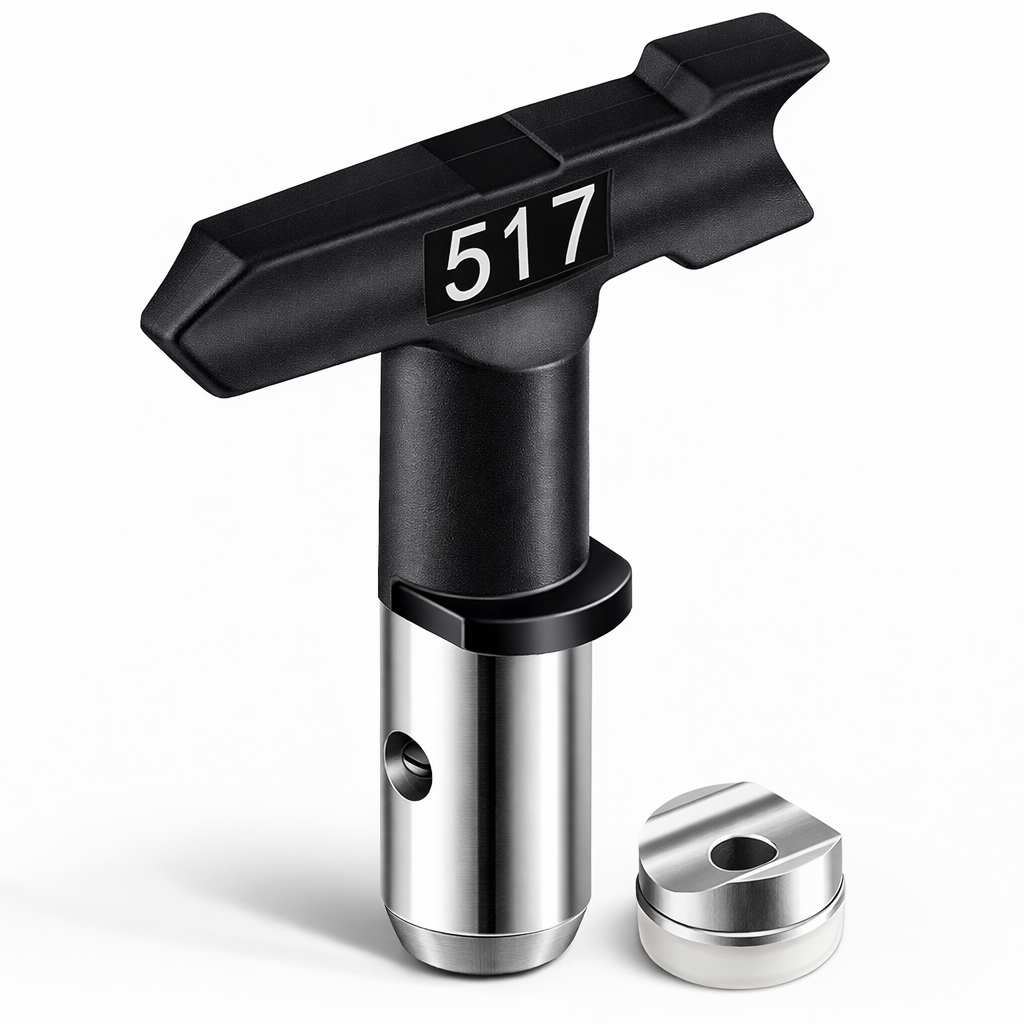

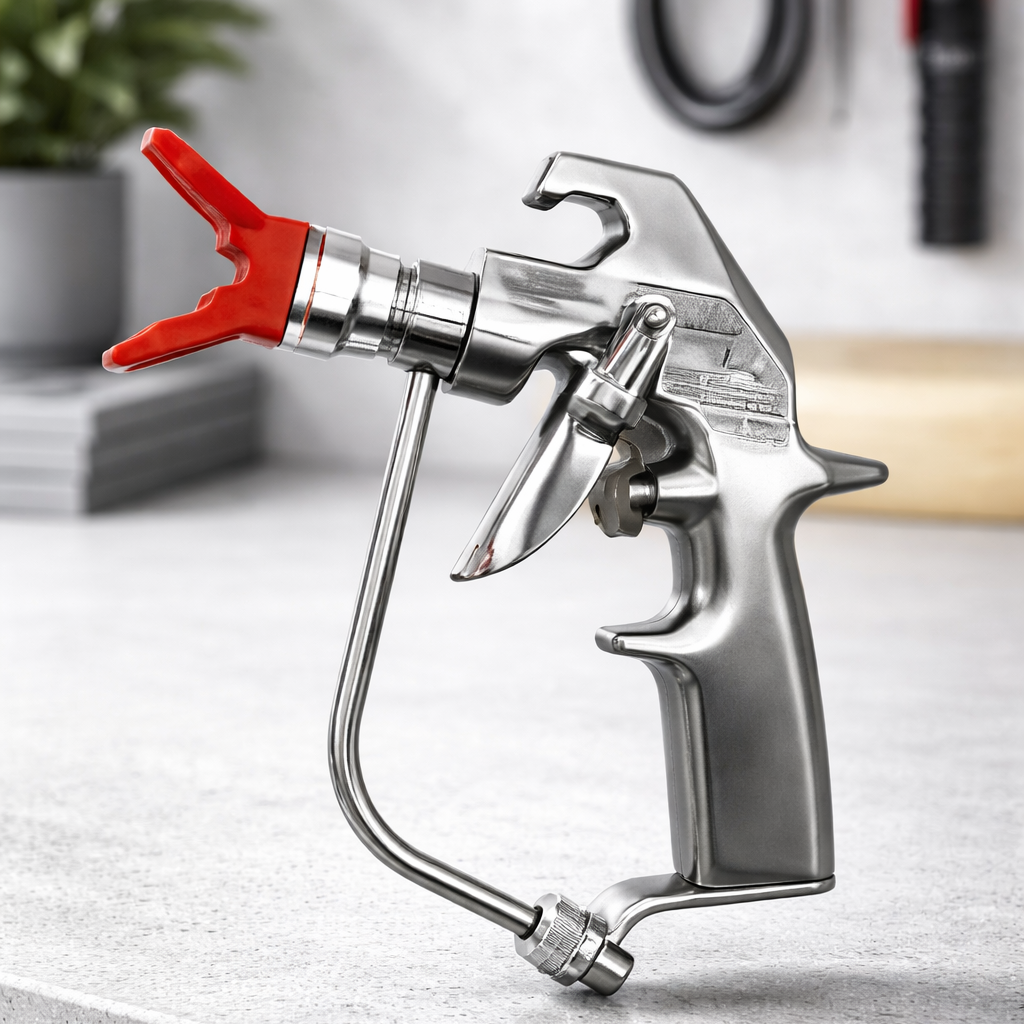

AS03 AIRLESS SPRAY GUN W/517 SPRAY TIP

Description

The AS03 Airless Spray Gun is a high-performance, professional-grade tool designed for precision coating applications. Built to deliver consistent spray patterns and withstand demanding operating conditions, the AS03 is ideal for use in industrial, construction, and maintenance painting environments.

Key Features

• High Pressure Capability:
  Engineered to operate at a maximum pressure of 5000 psi (345 bar), the AS03 ensures excellent atomization of coatings for smooth, uniform finishes—even with high-viscosity materials.
• Durable Construction:
  Manufactured with high-strength aircraft aluminum and carbide components to provide long service life, corrosion resistance, and reliability under continuous operation.
• Ergonomic Design:
  Lightweight and balanced body design reduces operator fatigue, while the contoured handle and smooth trigger action ensure comfort and precise control.
• Easy Maintenance:
  The AS03 is designed with a simple structure that allows for quick disassembly, cleaning, and replacement of wear parts such as needles, seals, and filters.

Technical Specifications

Parameter	Specification
Model	AS03
Maximum Working Pressure	5000 psi (345 bar)
Output Thread	7/8″ × 14 UNF
Input Thread	1/4″ × 18 NPS (19-thread optional)
Material Compatibility	Waterborne coatings, primers, sealers, and industrial paints
Gun Type	Airless
Application	Industrial coating, metal fabrication, shipbuilding, construction, and maintenance painting
