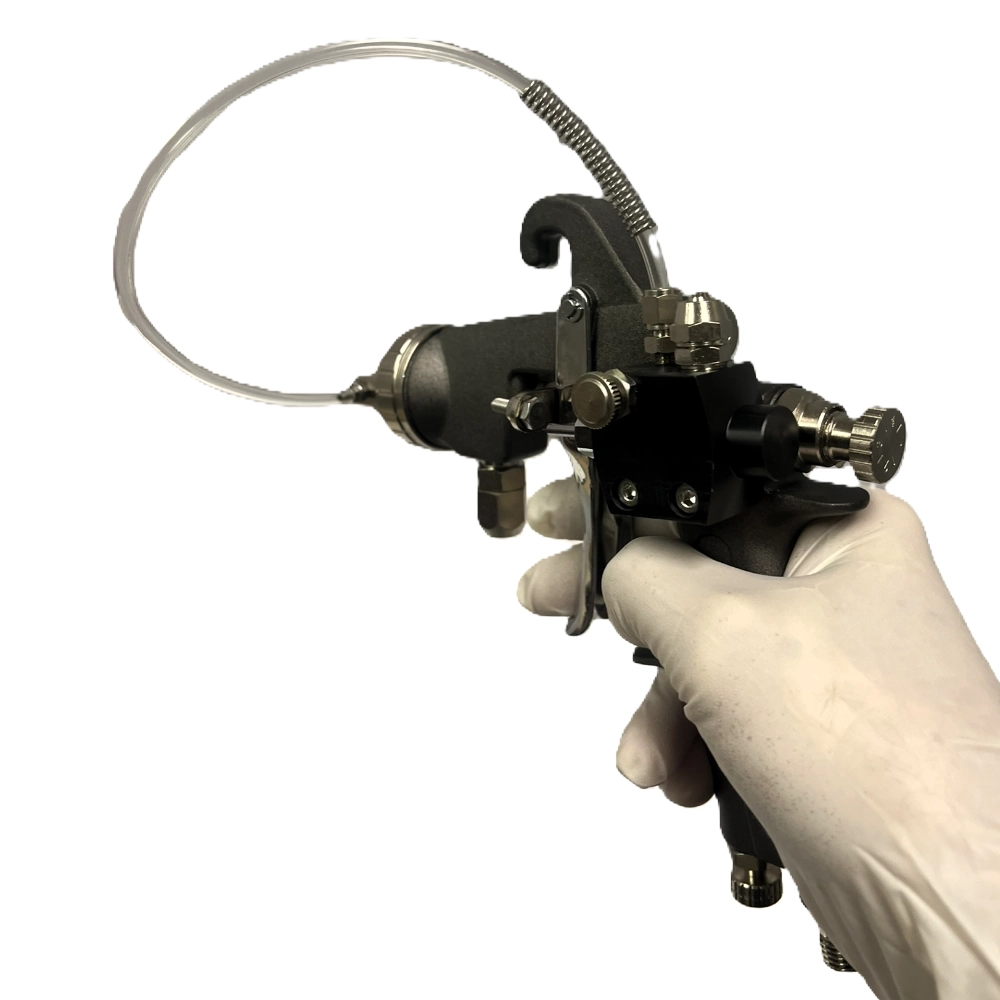

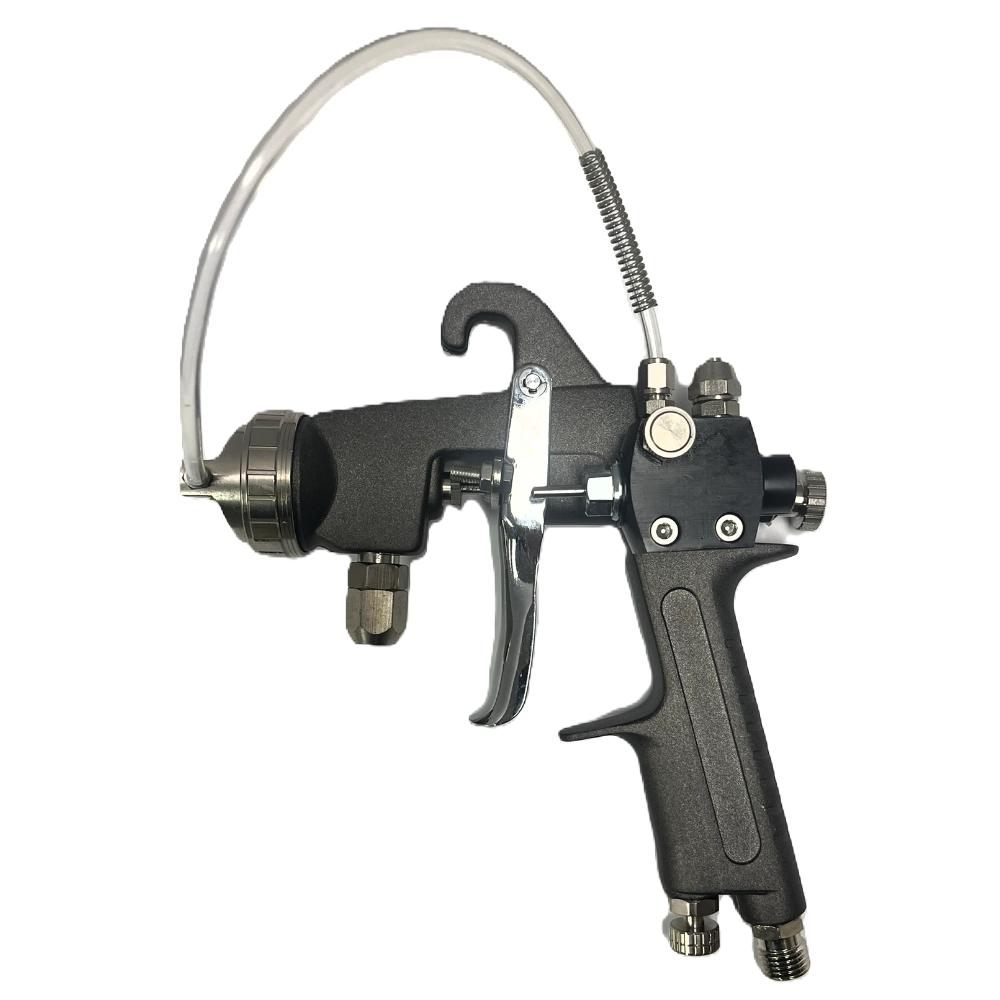

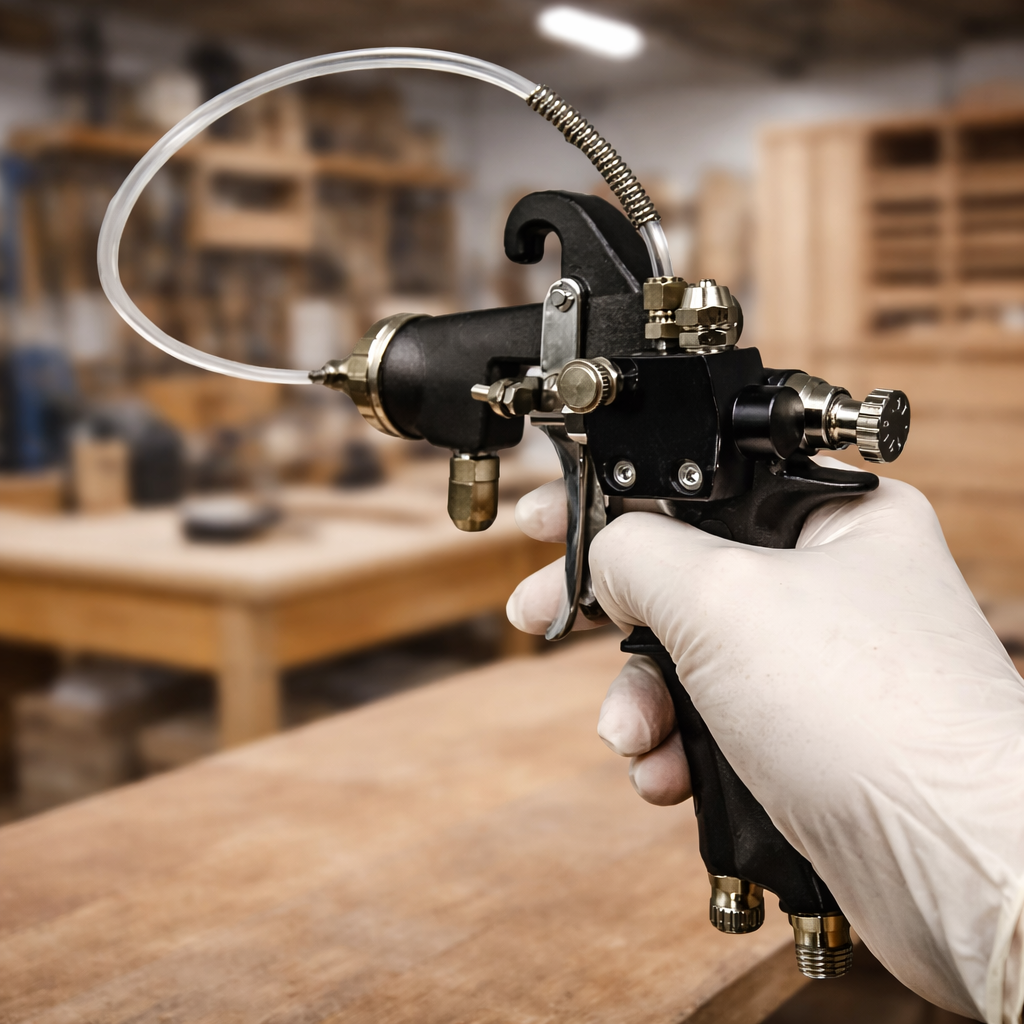

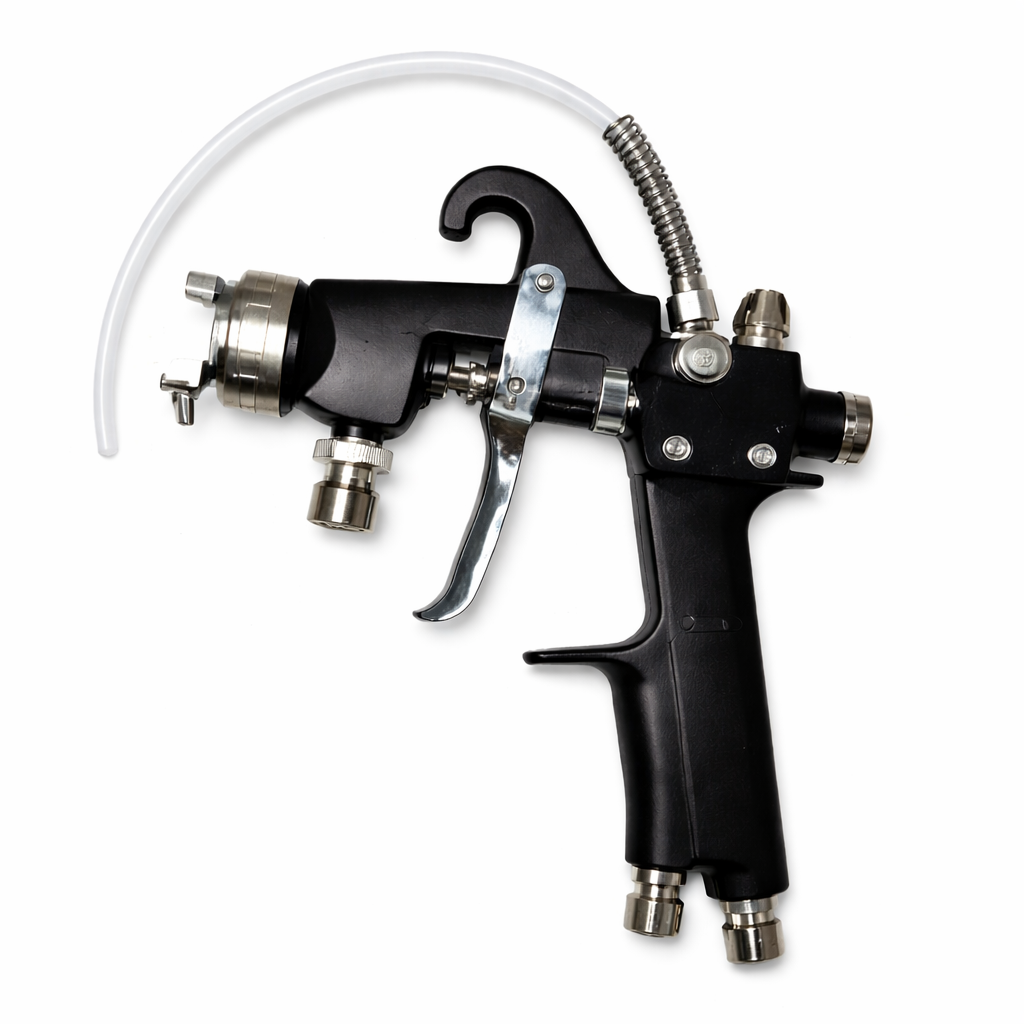

W101-152P 2-Part Spray Gun w/1.5mm Ndl/Nzl Assy

Description

Key Features

• The W101-152P is engineered for 2-part adhesive / water-based contact adhesive systems (i.e., one part adhesive + an activator/coagulant).
• It comes with a 1.5 mm needle/nozzle assembly, which is fairly typical for mid-viscosity adhesives in spraying applications. 2.0mm needle/nozzle assembly available for more viscous materials.
• It includes an activator flow control knob (on the side of the gun) so that the user can precisely adjust how much activator/coagulant is delivered alongside the adhesive.
• It is compatible with bulk dispensing systems (diaphragm pumps or gravity feed) suitable for production or industrial adhesive set-ups.
• The gun body is designed to be ergonomic and lightweight for operator comfort during extended use.

Typical Applications

• For spraying 2-part water-based contact adhesives, especially where one component (activator) aids in coagulation or rapid set of the adhesive.
• In industrial manufacturing, lamination, panel bonding or other processes where adhesive and activator must be applied simultaneously or in controlled ratio.
• When you need high transfer efficiency (getting more adhesive into the bond and less wasted in overspray) and clean, controlled application. The description states “high transfer efficiency, low overspray.”

Advantages / Why It’s Good

• The integrated activator control means better control over the ratio of adhesive to activator, which is critical in 2-part systems for consistent bonding performance.
• Using a dedicated gun built for this purpose (rather than a standard paint or single component spray gun) helps minimize mistakes and waste, improving production consistency.
• The 1.5 mm nozzle is large enough to handle moderate viscosity adhesives but yet precise enough for controlled application—good compromise in many adhesive systems.
• The ergonomic build reduces fatigue in continuous use — beneficial in production settings.

Considerations / Things to Check

• Ensure your adhesive system is compatible with the 1.5 mm needle/nozzle size. Highly viscous adhesives may require larger or specialized nozzles.
• The gun is described for water-based adhesives with activator/coagulant systems. If you are using solvent-based adhesives or different chemistry, check for compatibility.
• Maintenance of the activator flow control and cleaning after use is important: adhesive systems are often more demanding than paint in terms of cleanup to avoid clogging.
• Ensure your pumping/delivery system (bulk dispenser, diaphragm pump, or gravity feed) is correctly set up and balanced for both the adhesive and the activator streams.
• Cost may be higher than a regular spray gun (given the specialized nature); ensure return on investment based on your production throughput and adhesive usage.

Specification Snapshot

• Model: W101-152P / WS-101-152P.
• Needle/Nozzle: 1.5 mm. – 2.0mm
• Function: 2-part adhesive spray gun with activator flow control.
• Feed Type: Bulk dispensing / diaphragm pump or gravity feed.
• Application: Water-based 2-part contact adhesives with activator/coagulant.
